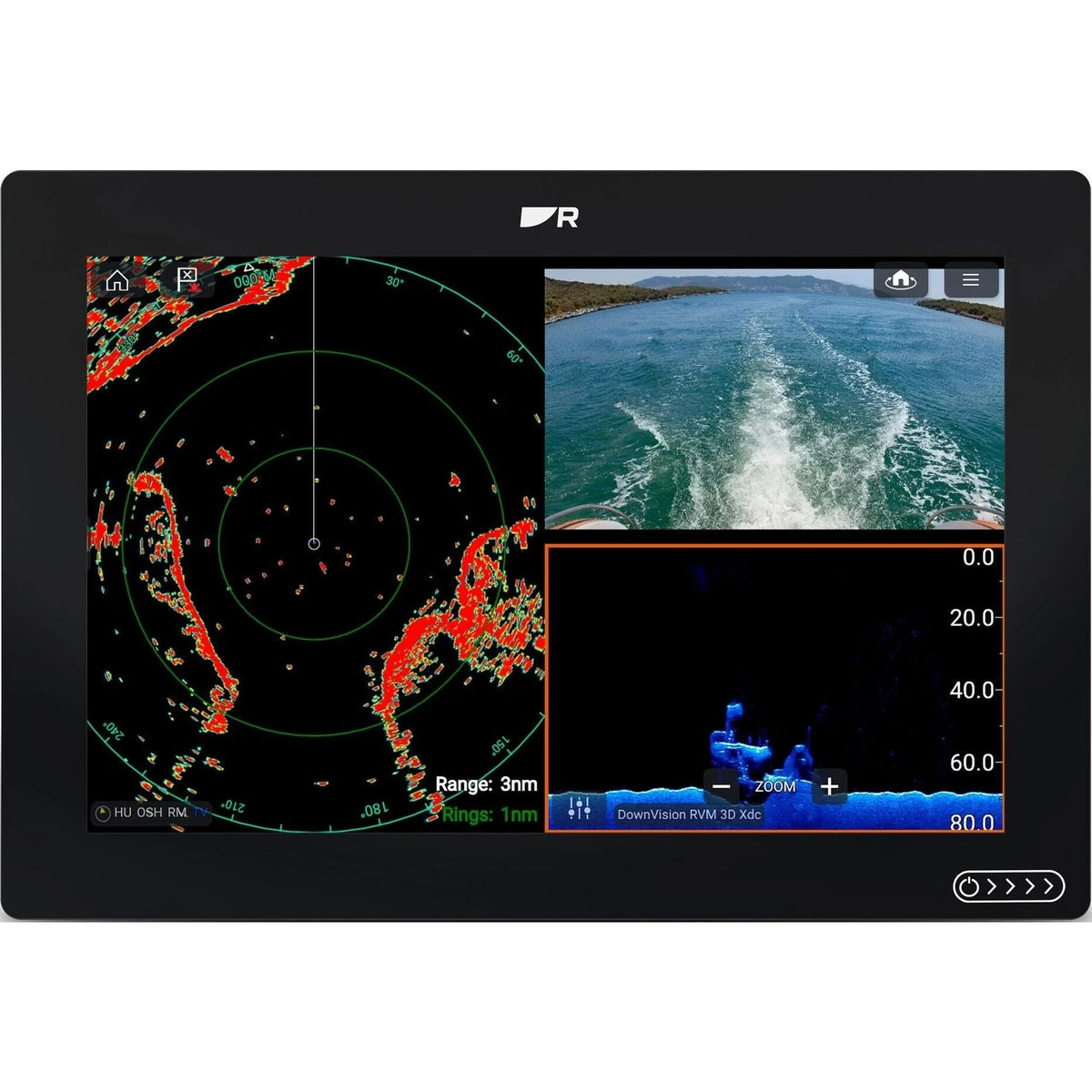

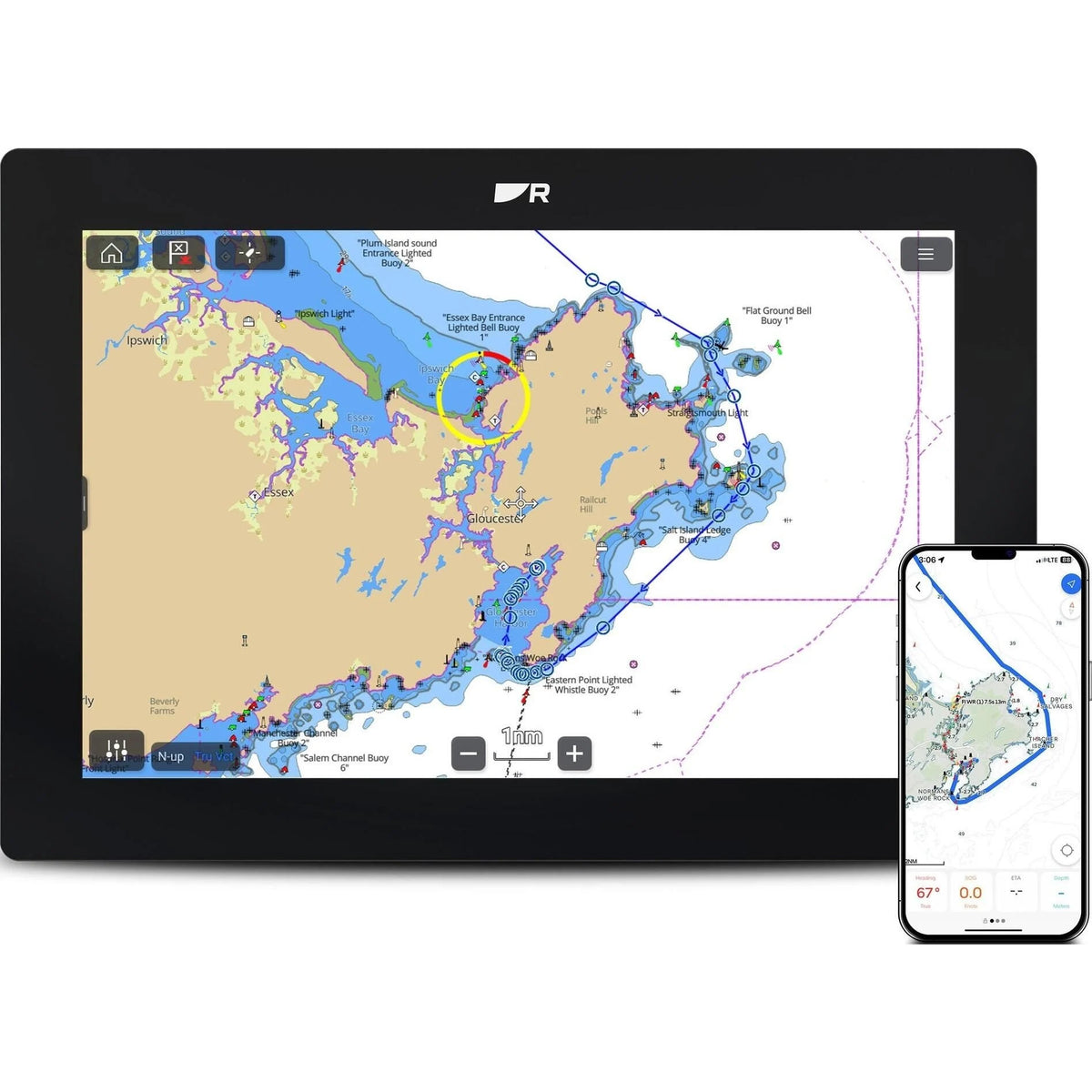

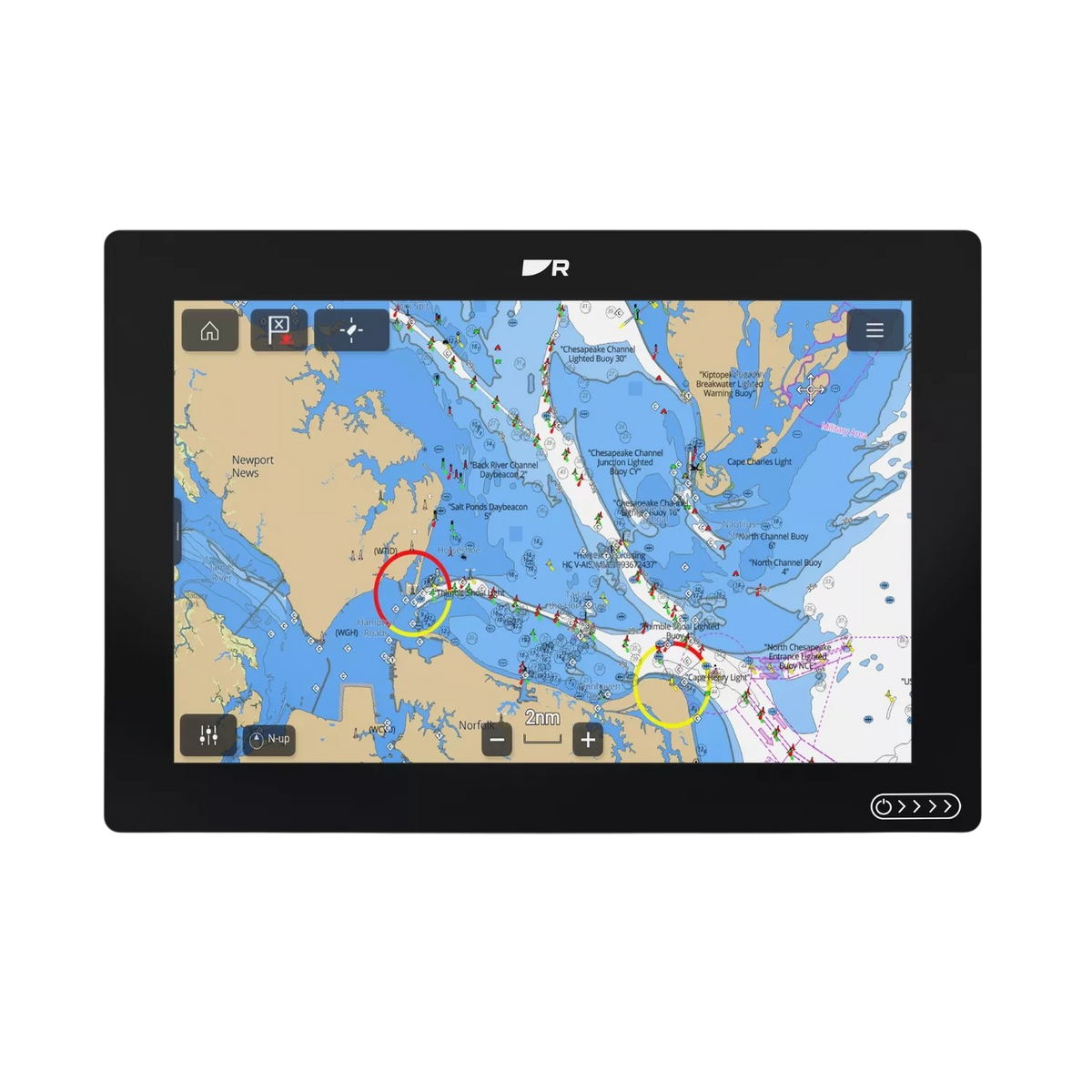

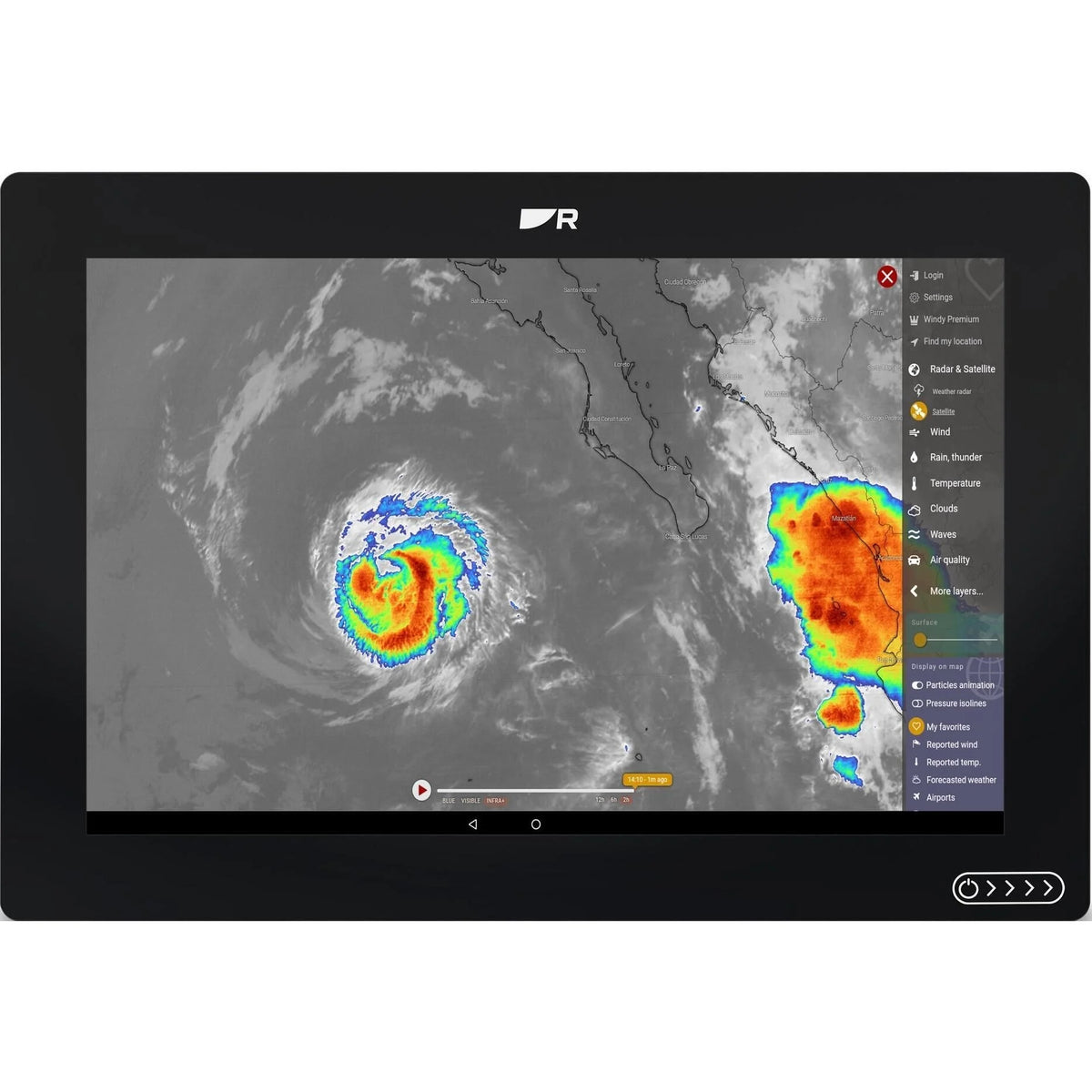

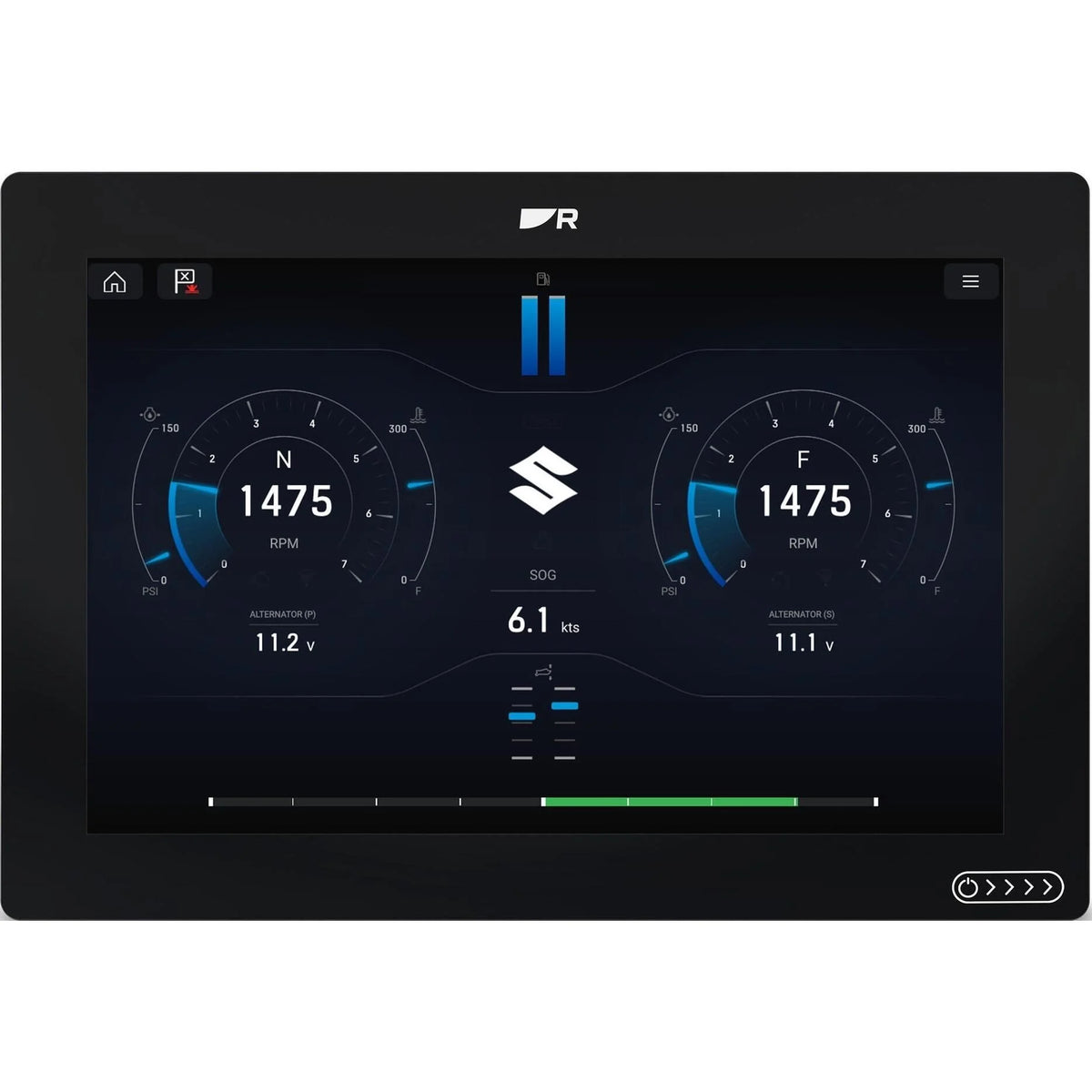

Raymarine AXIOM 2
Couldn't load pickup availability
We sell it. We install it.
Professional marine installation available through Boston Marine Services.
Get an Installation Quote Call UsDescription
Axiom 2 chartplotters deliver faster performance and upgraded processing power in 7-, 9-, or 12‑inch sizes. Available as chartplotter‑only or with built‑in RealVision™ sonar.
| Dimensions (Trunnion mounted) |
Axiom 2 7" Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom 2 12" Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) |
Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom 2 9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection |
USB Micro B |
| Ethernet connection |
RayNet (10 / 100 / 1000 Mbit/sec Ethernet) |
| External storage |
MicroSDXC card slot x 1 |
| NMEA 2000 connection |
DeviceNet (male connector built into power cable) |
| Wireless connections |
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage |
64 GB |
| Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
