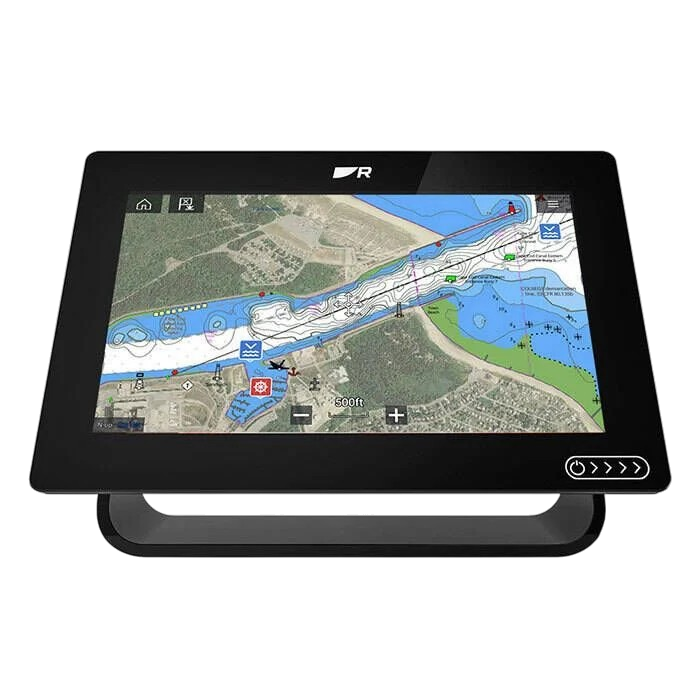

Raymarine AXIOM+ 9

Description

The performance-tuned Axiom+, is Raymarine's new generation of award-winning multifunction displays. Optimized for speed, the Axiom+ is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts for simpler navigation on the water.

Features:

• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• Smart and intuitive LightHouse 3 OS makes navigating easy
• Uncluttered interface that can be easily personalized for your style of navigating
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
• Quantum CHIRP radar ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges
• Marine audio control - Control NMEA2000 compatible marine audio systems
• Ready to network, with Raynet ethernet and NMEA2000
• Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments and more
• Built-in Wi-Fi for streaming and control right from your smartphone or tablet
• Sync Axiom's waypoints, routes, and charts with Navionics mobile apps
• No chart included

Specifications:

• Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
• Brightness: 1,500 nits
• Viewing Angle: 85° Top, Bottom, Left, Right
• Dimensions (W x H x D): 12.36" x 8.93" x 7.01" (314 x 226.72 x 178 mm)
• Mounting options: Surface, Flush, Trunnion, (Front installation bracket available)
• Waterproof rating: IPX6/IPX7
• Operating temperature range: -13° F to 131° F
• Storage temperature range: -22° F to 158° F

Sensors

• GNSS/GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 28 Channel - Future software update required
• External sensor: Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
• Radar: Yes - Quantum, Digital, HD Color/Super HD Color and Magnum Radars
• AIS: Yes - NMEA2000 compatible
• Autopilot control: Yes - Evolution Autopilot
• Thermal night vision: Yes FLIR AX8, M232, M300 Series, M400, M500
• Video/Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
• Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
• Audio: NMEA2000/Bluetooth speaker controls/Optional SiriusXM Audio
• Digital switching: Yes - Empirbus & C-Zone compatible
• Remote control: Yes - Optional RMK-10 (A80438)

Networking

• Ethernet: 1 x 10/100 Mbit/s Network (RayNet)
• NMEA0183: No
• NMEA2000: NMEA2000 via DeviceNet port. SeaTalkNG compatible using an optional adapter
• SeaTalkNG: Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
• USB: 1x USB microAB
• Wi-Fi: 802.11 a/b/g/n
• BlueTooth: v4.0

Navigation

• Cartography: Lighthouse Charts, Navionics, and C-MAP compatible
• Waypoint/Routes/Tracks: 10,000 wpts/200 wpt groups/150 rts - 250 wpt max/16 tracks - 10,000 max trk pts

Memory

• Internal memory: 16 GB Solid State
• External memory: 1x MicroSD Card Slot
• Languages: 24
